Connecting securely to Google Compute Engine server with SFTP

With WinSCP you can easily upload and manage files on your Google Compute Engine (GCE) instance/server over SFTP protocol.

Before starting you should:

• Have WinSCP installed;
• Have Google Compute Engine instance running.

First you need to generate your private key, if you do not have one yet:

• Use PuTTYgen tool to generate new key.
• PuTTYgen installs by default with WinSCP. One way, to run it, is using Tools > Run PuTTYgen command on WinSCP Login dialog.

Collect information about your GCE instance:

• IP address: Check External IP column on Compute > Compute Engine > VM Instances page of your project on Google Cloud Platform.
• Host key fingerprint: On the first connect you will be prompted to verify a server host key.

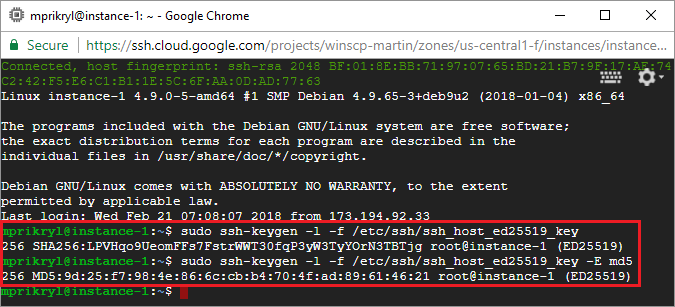

  • To securely acquire a fingerprint of the host key, use web-based SSH client in Google Cloud Platform (use SSH link on the VM Instances page). In the console, use ssh-keygen command to display a fingerprint of any number of host keys algorithms. The following example shows SHA-256 and MD5 fingerprints of Ed25519 hostkey:


    sudo ssh-keygen -l -f /etc/ssh/ssh_host_ed25519_key
    sudo ssh-keygen -l -f /etc/ssh/ssh_host_ed25519_key -E md5



Set up SSH keys for your Google Compute account:

• Load your private key to PuTTYgen;
• Enter the username (an existing one or any other account name you want to be created) to the Key comment box.
• Copy a contents of Public key for pasting into OpenSSH authorized_keys file to the clipboard (note that the contents includes your username);
• Go to Metadata page of your project on Google Cloud Platform;
• Go to SSH Keys tab and click Edit;
• Click Add item button and paste contents of the clipboard to Enter public SSH key box (note how the username is automatically recognized).
• On the bottom of the page, click Save and wait for the key to be saved.

If you want to set up the keys for a specific VM instance only, go to Edit > SSH Keys > Show and edit > Add item on the instance page instead of using project’s Metadata page.

Finally, start WinSCP. Login dialog will appear. On the dialog:

• Make sure New site node is selected.
• On the New site node, make sure SFTP protocol is selected.
• Enter your GCE instance public IP address (see above) into the Host name box.
• Enter the account name (that the console extracted out of your GCE username) into the User name box;
• Press Advanced button to open Advanced site settings dialog and go to SSH > Authentication page.
• In the Private key file box select your private key file.
• Submit the Advanced site settings dialog with OK button.
• Save your site settings using the Save button.
• Login using the Login button.
• Verify the host key by comparing fingerprints with those collected before (see above).
